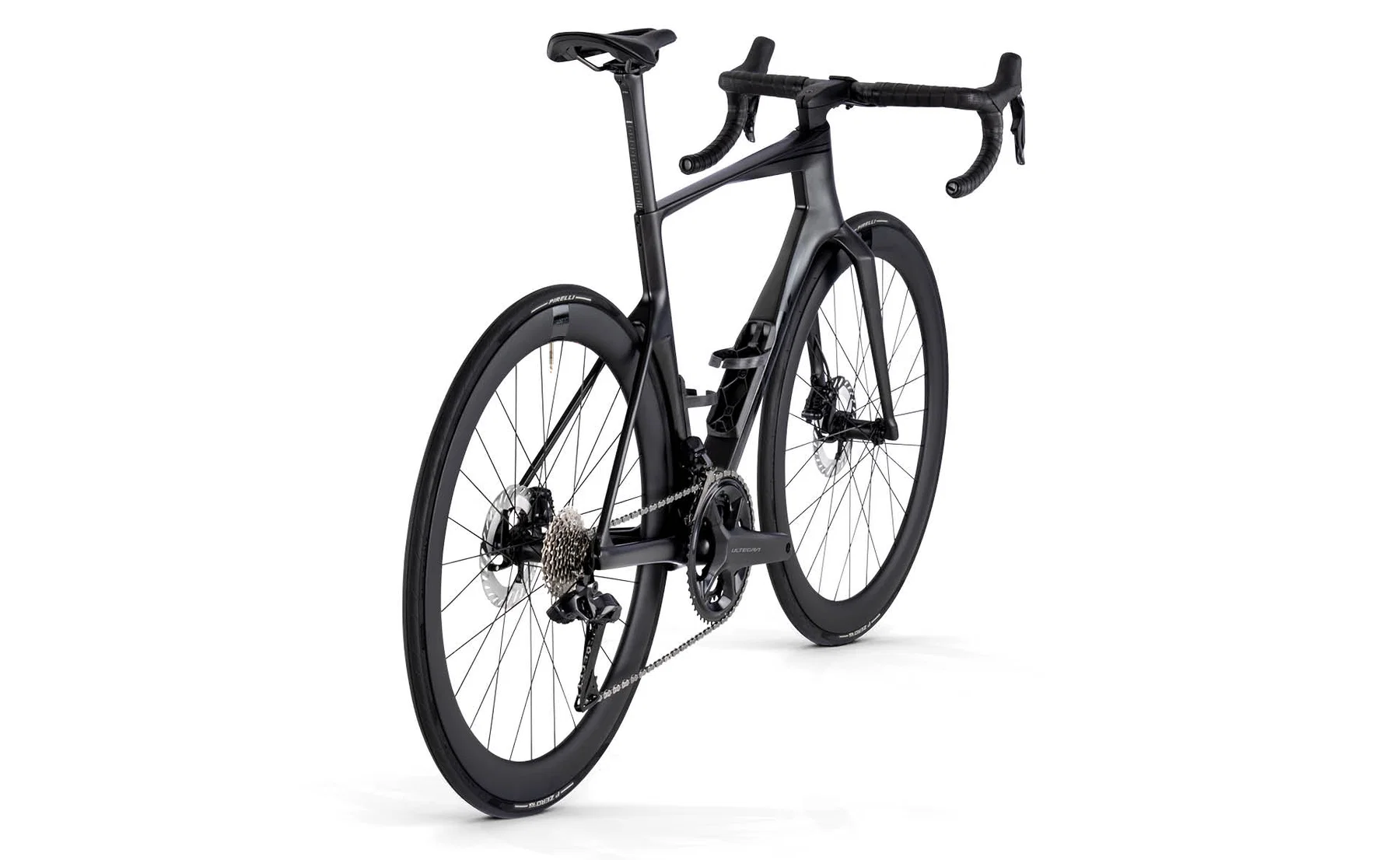

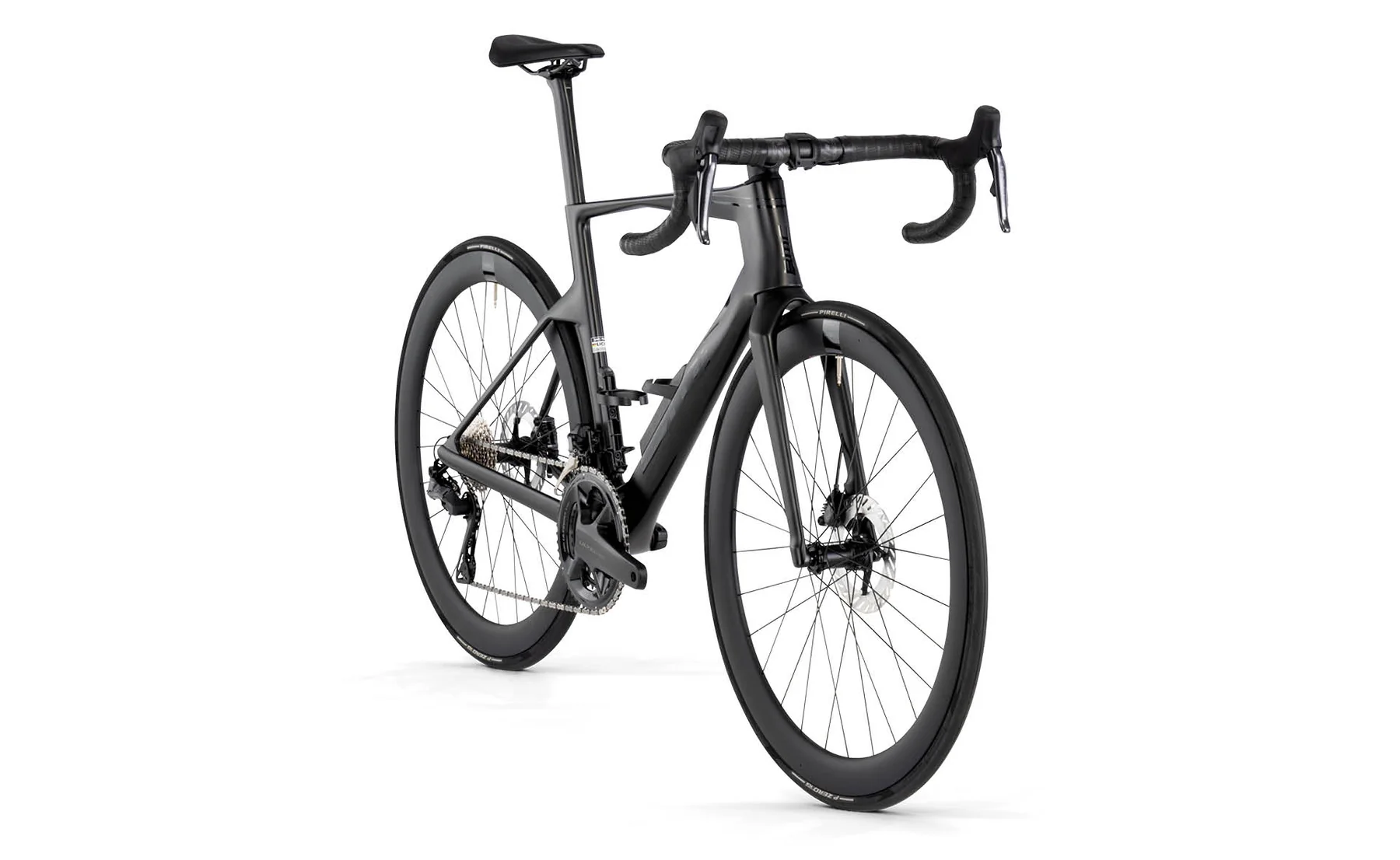

TEAMMACHINE R 01 FOUR 54 CBN BLK BLK

Cuadro

Cuadro:
Teammachine R 01 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle

Horquilla:
Teammachine R 01 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle



Cockpit

Potencia:
BMC ICS2 | Integrated Cockpit System Technology

Manillar:
Easton EC70 SL Carbon or Easton EC90 SLX Carbon



Seat

Tija de Sillín:
Teammachine R 01 | 01 Premium Carbon Seatpost | 10mm Offset

Sillín:
Fizik Argo Vento R3 | 140mm



Transmisión

Platos y Bielas:
SHIMANO Ultegra FC-R8100

Platos:
52-36T

Potenciómetro:
4iiii Precision 3+ Power Meter (Left Side)

Cassette:
SHIMANO Ultegra CS-R8100

Tamaño del cassette:
11-30T

Cadena:
SHIMANO CN-M8100

Desviador Delantero:
SHIMANO Ultegra Di2 FD-R8150

Cambio Trasero:
SHIMANO Ultegra Di2 RD-R8150

Manetas de Cambio:
SHIMANO Ultegra Di2 ST-R8170

Marchas:
2 x 12

Pedalier:
PF86 Bottom Bracket



Frenos

Pinzas de Freno:
SHIMANO Ultegra BR-R8170

Discos:
SHIMANO RT-CL800

Tamaño del disco:
160 / 160mm



Ruedas

Llantas:
CRD-501 Carbon | Tubeless Ready | 50mm

Bujes:
CRD-501

Neumáticos:
Pirelli P Zero Race TLR | 26mm

Información Tubeless:
Tubeless Ready Rims | Tubetype Tires



Accesorios

En la caja:
Aerocore Bottle Cages

Información adicional

Paso de rueda:
30mm measured tire

Peso sin pedales:
7.5 Kg

Clasificación ASTM:
Level 1

Límite de peso del sistema:
110kg

Size	47	51	54	56	58	61
Rider Height	<166	166-174	172-180	178-186	184-192	>190
Reach	368	378	387	393	402	409
Stack	504	528	548	563	582	608
Bar Drop	125	125	125	125	125	125
Bar Reach	80	80	80	80	80	80
Bar Width	400	420	420	420	420	440
BB Drop	69	69	69	69	69	69
Crank Length	170	170	172.5	172.5	175	175
Fork Length	367	367	367	367	367	367
Fork Rake	48	48	43	43	43	43
Front Center	568	586	589	599	614	630
Head Tube	108	133	149	165	184	211
Head Tube Angle	71.5°	71.5°	72.3°	72.3°	72.3°	72.3°
Rear Center	410	410	410	410	410	410
Seat Angle	74°	74°	73.5°	73.5°	73°	73°
Seat Tube	418	463	499	519	541	570
Seatpost Length	335	335	385	385	405	405
Seatpost Offset	10	10	10	10	10	10
Standover Height	721	755	781	799	813	836
Stem Angle	-12.5°	-12.5°	-12.5°	-12.5°	-12.5°	-12.5°
Stem Length	90	100	100	110	110	120
Top Tube	515	532	552	562	582	598
Trail	63	63	63	63	63	63
Wheelbase	968	986	989	999	1015	1030
